Bakelite Strip Connector

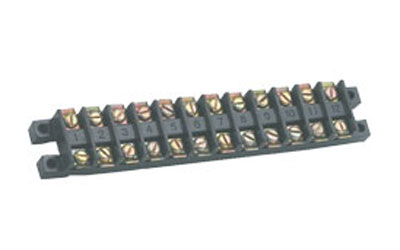

Open Type Connectors 15 AMPS
Technical Specifications:
| Rating | 15 Amps. |
|---|---|
| Housing | High Grade (PF) Moulding Powder |
| Terminals | Brass Duly Nickle Plated |
| Screws | Steel Zinc plated, Yellow chromated |
| Washer | Steel Zinc plated, Yellow chromated |
| Insulation resistance | >20MW (Min) at 500V.DC |
| H.V.Test | 2.5 KV Test Between Two Adjacent Terminals For 1 Min. |
| Wire Size | 2.5 Sq. mm. (Max.) |
| No.Of Way | 2 Ways To 12 Ways |

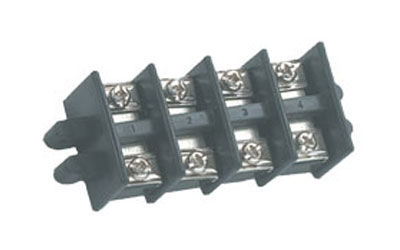

Open Type Connectors 30 AMPS
Technical Specifications:
| Rating | 30 Amps. |
|---|---|
| Housing | High Grade (PF) Moulding Powder |
| Terminals | Brass Duly Nickle Plated |
| Screws | Steel Zinc plated, Yellow chromated |
| Washer | Steel Zinc plated, Yellow chromated |
| Insulation resistance | >20MW (Min) at 500V.DC |
| H.V.Test | 2.5 KV Test Between Two Adjacent Terminals For 1 Min. |
| Wire Size | 4.0 Sq. mm. (Max.) |
| No.Of Way | 2 Ways To 12 Ways |

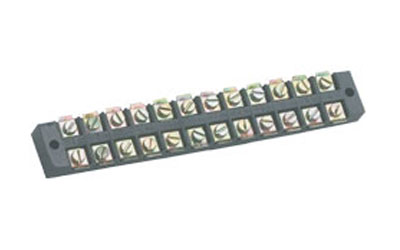

Open Type Connectors 60 AMPS
Technical Specifications:
| Rating | 60 Amps. |
|---|---|
| Housing | High Grade (PF) Moulding Powder |
| Terminals | Brass Duly Nickle Plated |
| Screws | Steel Nickle plated |
| Washer | Steel Nickle plated |
| Insulation resistance | >20MW (Min) at 500V.DC |
| H.V.Test | 2.5 KV Test Between Two Adjacent Terminals For 1 Min. |
| Wire Size | 16.0 Sq. mm. (Max.) |
| No.Of Way | 2 Ways To 12 Ways |

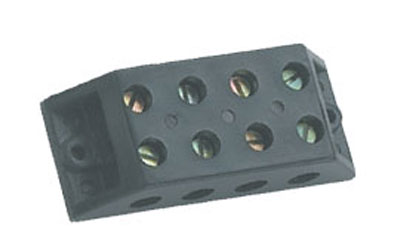

Close Type Connectors 5, 10, 15 & 30 AMPS
Technical Specifications:
| Rating | 5 Amps / 10 Amps. / 15 Amps. / 30 Amps. |
|---|---|
| Housing | High Grade (PF) Moulding Powder |
| Terminals | Brass Duly Nickle Plated |
| Screws | Steel Zinc plated |
| Insulation resistance | >20MW (Min) at 500V.DC |
| H.V.Test | 2.5 KV Test Between Two Adjacent Terminals For 1 Min. |
| No.Of Way | 2 Ways To 12 Ways |

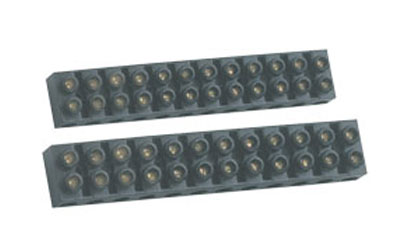

Rigid Type Connectors 30 AMPS
Technical Specifications:
| Rating | 30 Amps. |
|---|---|
| Housing | High Grade (PF) Moulding Powder |
| Terminals | Brass Duly Nickle Plated |
| Screws | Steel Zinc plated |
| Insulation resistance | >20MW (Min) at 500V.DC |
| H.V.Test | 2.5 KV Test Between Two Adjacent Terminals For 1 Min. |
| No.Of Way | 2 Ways To 6 Ways |

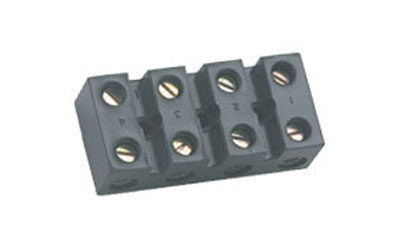

Rigid Type Connectors 60 AMPS
Technical Specifications:
| Rating | 60 Amps. |
|---|---|
| Housing | High Grade (PF) Moulding Powder |
| Terminals | Brass Duly Nickle Plated |
| Screws | Steel Zinc plated |
| Insulation resistance | >20MW (Min) at 500V.DC |
| H.V.Test | 2.5 KV Test Between Two Adjacent Terminals For 1 Min. |
| No.Of Way | 2 Ways To 6 Ways |

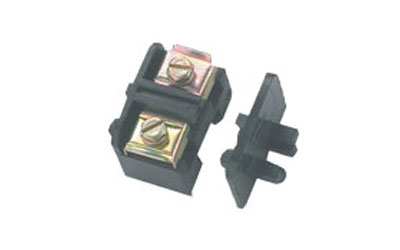

Add-On Type Terminal Block 30 AMPS & 100 AMPS With End Plate
Technical Specifications:
| Rating | 30 Amps. / 100 Amps. |
|---|---|
| Housing | High Grade (PF) Moulding Powder |
| Terminals | Brass Duly Nickle Plated |
| Screws | Steel Zinc plated |
| Washer | Steel Zinc plated |
| Insulation resistance | >20MW (Min) at 500V.DC |
| H.V.Test | 2.5 KV Test Between Two Adjacent Terminals For 1 Min. |
